상세 정보 |
|||
| 전압: | 220V | 힘: | 0.4KW |
|---|---|---|---|
| 단계: | 3상 | 통신 프로토콜: | 캔오픈 |
| 부호기: | 17 비트 타마가와 앱솔루트 인코더 ; | 정격 전류: | 2.5A |
| 입출력: | 펄스 | 제어 모드: | 위치 / 속도 / 토크 |
| 애플리케이션: | 브랜드 마킹 머신 | 상품 이름: | 자동 귀환 제어 장치 운전사 |
| 하이 라이트: | 0.4KW AC Servo Driver,60mm AC Servo Driver,60mm Custom Servo Drive |
||
제품 설명

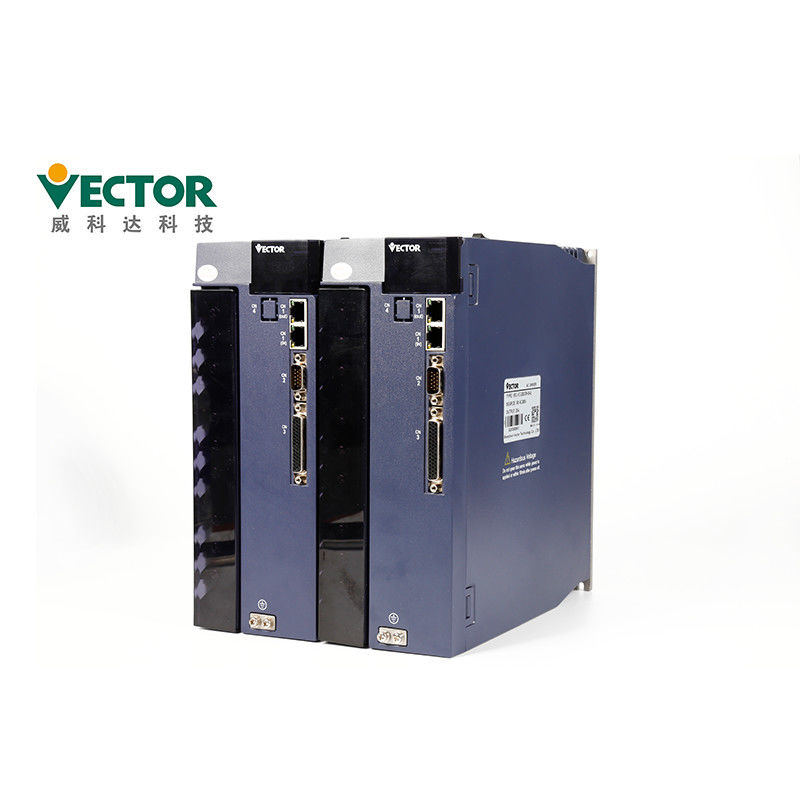

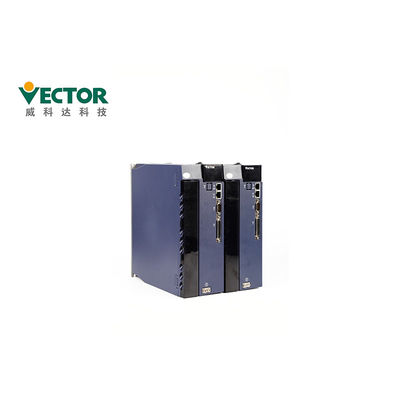

Custom And Modified AC Servo Driver 60mm Servo Motor Kit For Label Marking Machine
Products Description
| Product Name | Servo Driver |
| Brand | Vector |
| Model No. | VEC-VC1-00323M-M-E |
| Power | 0.4KW |
| Input/Output | Pulse/Analog |
| Voltage | 220V |
| Phase | Single/Three Phase |
| Rated Current | 2.6A |
| Communication Protocols | Modbus |
| Encoder | 17bit Tamagawa absolute encoder; |
Installation Precautions
● Install the driver on a dry and sturdy platform. Maintain good ventilation and
heat dissipation during installation and maintain good grounding.
● Please install in the specified direction to avoid malfunction.
● When installing, please ensure that the servo driver is kept at a specified
distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.
● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the product to enter,
otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.
The panel contains 5 buttons and 5 digital tubes.
The general functions of the five buttons are shown in the table below.
| Key Name | Key function |
| Mode | mode switch, return to the previous menu |
| ▲(add) | increase flashing bit value of the LED digital tube |
| ▼(dec) | Decrease flashing digit value of the LED digital tube |
| ◄◄(shift) | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
| SET | read/write parameter values |
Other Questions:
Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,
Torque and select the suitable model based our model list;
Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,
Please Just make the programming follow your experiences;
Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;
Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder,
17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Packing details of Servo Drive | |||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 |
