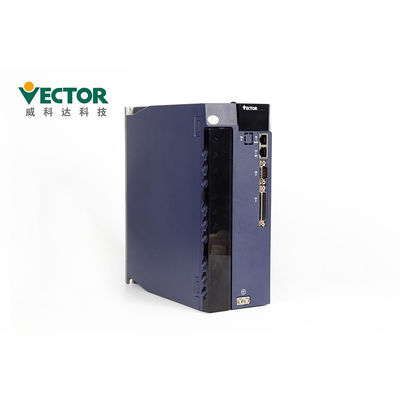

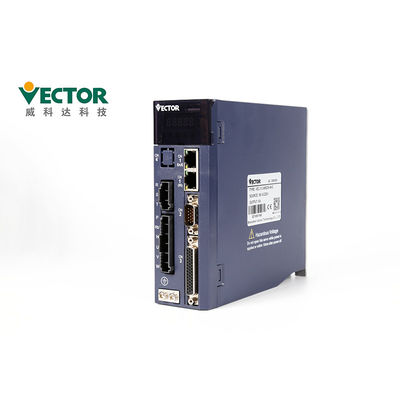

High Performance 1.5KW Multi Axis Servo Drive For Paper Cutting Machine
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Vector |
| 인증: | CE |
| 모델 번호: | VEC-VC-00623H-m-e |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 장비 |
|---|---|
| 가격: | To Be Discussed |
| 포장 세부 사항: | 280*208*78mm,375*290*155mm |
| 배달 시간: | 3-5 작업 일수 |
| 지불 조건: | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력: | 500개 장비 / 달 |
|
상세 정보 |
|||
| 전압: | 220V | 힘: | 1.5KW |
|---|---|---|---|
| 단계: | 3상 | 통신 프로토콜: | 펄스 / 캔오픈 |
| 부호기: | 17/23 비트 타마가와 앱솔루트 인코더 ; | 정격 전류: | 6A |
| 입출력: | 펄스 | 제어 모드: | 위치 / 속도 / 토크 |
| 애플리케이션: | 서류상 절단기 | 상품 이름: | 자동 귀환 제어 장치 모터 드라이브 |
| 강조하다: | 6A 멀티 축 서보 드라이브,1.5KW 멀티 축 서보 드라이브,1.5KW 고성능 서보 드라이브 |
||
제품 설명
1.5KW High Performance Servo Motor Drive For Paper Cutting Machine
More Flexible, More Accurate
AC Servo Drive
Power Range Covers 200W-110KW
Single/Three Phase 220V/380V
Modbus / CanOpen / EtherCAT
Location, Speed and Torque Control Mode
2500 line incremental + Hall encoder; 2500 line incremental; 17/23 bit Tamagawa absolute encoder;
24 bit Nikon absolute encoder
Products Description
| Product Name | Servo Motor Drive |
| Brand | Vector |
| Model No. | VEC-VC-00623H-M-E |
| Power | 1.5 KW |
| Input/Output | Pulse / CanOpen |
| Voltage | 220V |
| Phase | Single/Three Phase |
| Rated Current | 6A |
| Communication Protocols | CANopen |
| Encoder | 17/23 bit Tamagawa absolute encoder; |
Installation Precautions
● Install the driver on a dry and sturdy platform. Maintain good ventilation and
heat dissipation during installation and maintain good grounding.
● Please install in the specified direction to avoid malfunction.
● When installing, please ensure that the servo driver is kept at a specified
distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.
● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the product to enter,
otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.

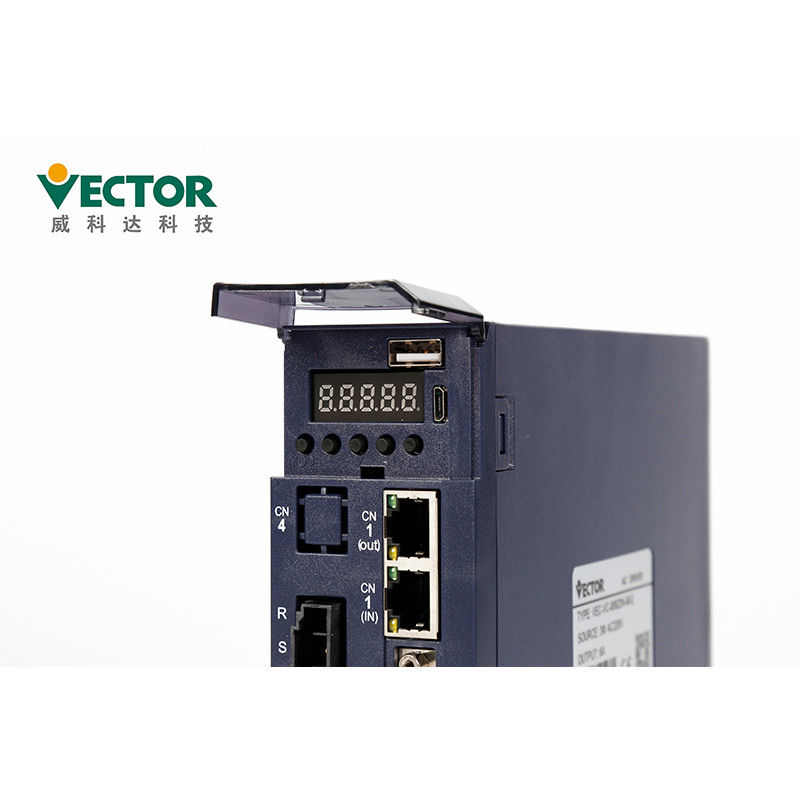

The panel contains 5 buttons and 5 digital tubes.
The general functions of the five buttons are shown in the table below.
| Key Name | Key function |
| Mode | mode switch, return to the previous menu |
| ▲(add) | increase flashing bit value of the LED digital tube |
| ▼(dec) | Decrease flashing digit value of the LED digital tube |
| ◄◄(shift) | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
| SET | read/write parameter values |
Other Questions:
Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,
Torque and select the suitable model based our model list;
Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,
Please Just make the programming follow your experiences;
Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;
Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder,
17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Packing details of Servo Drive | |||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 |
