이더넷 포트와 터치 스크린 4.3Inch HMI 제어판

이더넷 포트와 터치 스크린 4.3Inch HMI 제어판

제품 상세 정보:

원래 장소: 중국
브랜드 이름: Vector
인증: CE & RPHS
모델 번호: VEC-2104S-T

결제 및 배송 조건:

최소 주문 수량: 1개 장비
가격: To Be Discussed
포장 세부 사항: 375*290*155mm, 280*208*112mm
배달 시간: 5-8 작업 일수
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 500-1000 장비 /Month
최고의 가격 접촉

상세 정보

재료: ABS / 알루미늄 합금 사이즈: 7.4 인치
애플리케이션: 인쇄기 통신: 이더네트
표준: EN61000-6-4:2007 ROHS 상품 이름: HMI 인터페이스 화면
강조하다:

터치 스크린 HMI Panels

,

4.3Inch HMI Panels

,

4.3Inch 터치 스크린 HMI 제어판 제어 제어

제품 설명

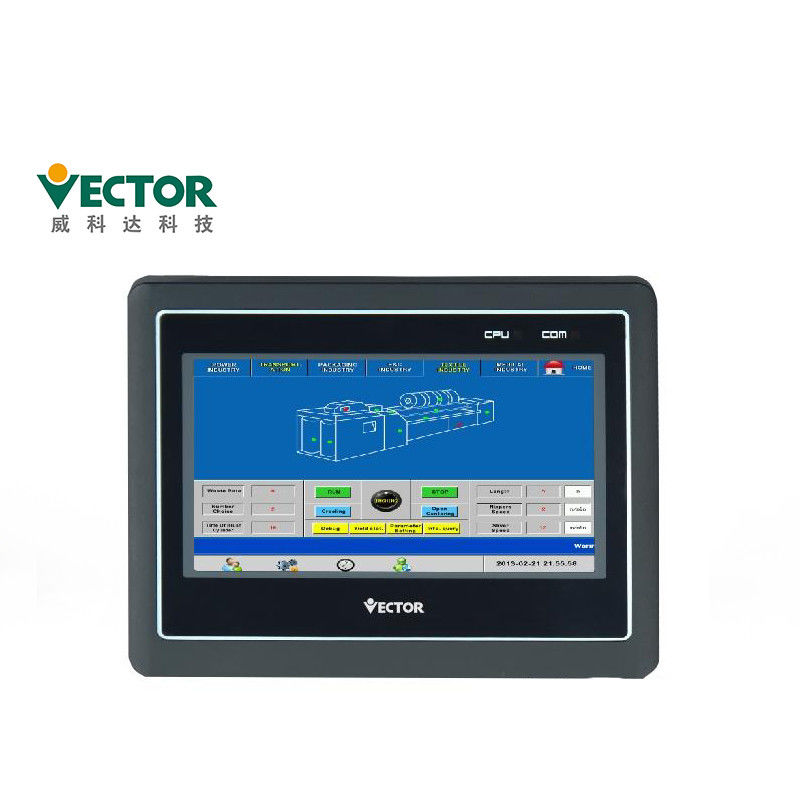

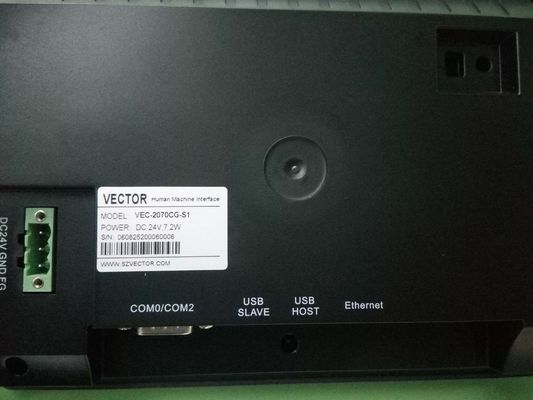

4.3 Inch Touch Screen Man-Machine Interface HMI With Ethernet Port



The Vector HMI touch screen inherits the classic design concept of low power consumption and high

reliability, and it is embedded with powerful and flexible and efficient configuration software. It not only

supports the connection of various series of meters, but also supports the smart meters of mainstream

brands on the market. , PLC, frequency converter and other equipment can be widely used in various

industrial, scientific research and civil scenes to provide you with high-quality application services.



Products Features:



Products HMI With Ethernet Port
Brand Vector
Model No. VEC-2104S-T
Size 4.3 inchs
Standard N61000-6-4:2007 ROHS
Communication Ethernet communication




Product Details:

Rated power: <10W

Rated voltage: DC 24V, working range DC 18V-32V

Power protection: use isolated power module, with lightning surge protection

Allow power loss: <5mS

CE&ROHS: Comply with EN61000-6-2:2005 standard

Comply with EN61000-6-4:2007 standard

Meet ROHS

Lightning surge ±4KW, group pulse ±4KW

Static contact 4KV, air discharge 8KV



Working Standards:

Storage temperature: -10~60℃ -20~70℃

Environmental humidity: 10%~90%RH (non-condensing)

Vibration resistance: 10~25Hz (X, Y, Z direction 2G/30 minutes)

Cooling method: natural air cooling Others:

Protection level: the front panel meets IP65 (installed with entrained panel cabinets), and the rear

shell of the fuselage meets IP20

Mechanical structure: The front panel is made of aluminum alloy, the surface is hardened and oxidized and

colored, and the back shell is made of aluminum alloy sheet metal, and the surface is painted.

Hole size: 260mm*202mm

Machine size: 275mm*215mm*39.6mm (excluding power terminals)

Whole machine weight: about 1500g



Models & description:

VEC-2070C-S VEC-2150X-T
VEC-2070i-S VEC-2070C-S1
VEC-2097C-S VEC-2070CG-S1
VEC-2104S-T VEC-2101S-S1
VEC-2121X-T VEC-2101SG-S1

Specifications:


VEC-2 104 S-T

   1    2   3   4  5


1. Brand code


2.1 means text products; 2 means man-machine interface products


3. Indicates that the display size 043 represents 4.3 inches; 070 represents 7 inches


4. C stands for resolution=800*480. S stands for resolution=1024*600; X stands for (SVGA=HD resolution=1024*768)


5. T stands for aluminum alloy shell, S stands for plastic shell



Packing & Shipping:



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325
Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78



Delivery Time

Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days 5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Payment Terms:
Samples: 100% before delivery by Western Union.
Bulk Orders: 30% deposit, 70% before shipping by T/T or Western Union.
