상세 정보 |
|||
| 전압: | 220V | 힘: | 0.75 kw |
|---|---|---|---|
| 단계: | 단일 상 | 통신 프로토콜: | CanOpen/EtherCAT/ 캔오픈 |
| 부호기: | 17 23 / 24는 타마가와 앱솔루트 인코더를 물었습니다 ; | 정격 전류: | 6A |
| 입출력: | 펄스 / 아날로그 | 제어 모드: | 위치 / 속도 / 토크 |
| 애플리케이션: | 음식 포장기 | 상품 이름: | 220V 750 와트 서보 드라이브 |
| 하이 라이트: | 750 와트 멀티 축 서보 드라이브,단일 상 멀티 축 서보 드라이브 |
||
제품 설명

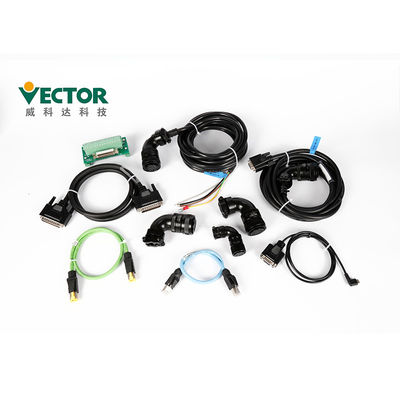

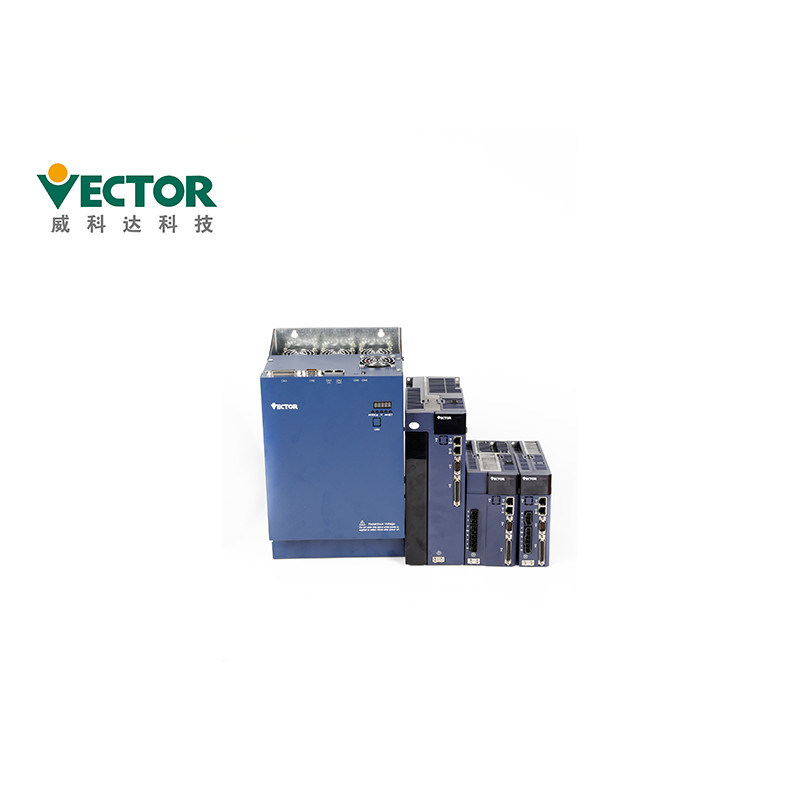

220V 750 Watt Servo Drive Single Phase Servo Motor With 3M / 5M Cable
Products Description
| Product Name | 220V 750 Watt Servo Drive |
| Brand | Vector |
| Model No. | VEC-VC1-00623M-M-E |
| Power | 0.75KW |
| Input/Output | Pulse/Analog |
| Voltage | 220V |
| Phase | Single Phase |
| Rated Current | 6A |
| Communication Protocols | CanOpen / EtherCAT / Modbus |
| Encoder | 17 / 23 / 24 bit absolute encoder; |
Wiring precautions
● It is recommended not to use single-phase 220V for main power supply,
which may cause damage to electrolytic capacitor due to lack of phase.
● Do not change the wiring during power-on, otherwise it may cause electric
shock or injury.
● Please perform wiring or inspection by professional technicians, otherwise it
may cause electric shock or product failure.
● Please carefully confirm the wiring and power supply. The output circuit
may be short-circuited due to wiring errors or application of different voltages.
The brake does not operate when the above fault occurs, which may result in mechanical damage or personal injury.
● Do not connect the input power cable to the U, V, and W terminals of the
drive. Otherwise, the servo driver will be damaged.
● When wiring, do not pass the power cable and signal cable through the same
pipe, and do not bundle them together. The distance between the two should be more than 30cm to avoid interference.
● The driver ground terminal must be grounded to avoid leakage and reduce
the interference of the system, and the diameter of the ground wire should be the same as or above the power supply line.
● When connecting the AC power supply and DC power supply to the servo unit, connect to the specified terminal.
Failure to do so may result in malfunction or fire.
● For the wiring length, the command input line is up to 3m and the encoder
line is up to 20m.
● Use a twisted-pair shielded cable for the signal cable and encoder cable, and
ground the shield with a single end.
●The U, V, W terminals of the driver and the U, V, and W terminals of the
motor should be connected one by one according to the name. If it is wrong connected, the motor cannot operate normally.
● Common DC bus products require pressure sensitive resistors and the wiring
is secure.
● Please check the power after the power is off for at least 5 minutes. Even if
the power is turned off, high voltage may remain inside the servo drive. Therefore, do not touch the power terminal within
5 minutes after the power is turned off, otherwise it may cause electric shock.
● Do not turn the power ON/OFF frequently. When it is necessary to
continuously turn ON/OFF the power, please control it once or less in 1 minute. Since the power supply section of the
servo driver has a capacitor, a large charging current (charge time of 0.2 seconds) flows during the ON/OFF power supply.
Therefore, if the power is turned ON/OFF frequently, the performance of the main circuit components inside the servo driver
will be degraded.
● Do not apply power when the terminal block screws are loose or the cable is
loose. Otherwise, it may cause fire.
● Take appropriate shielding measures in the following locations, otherwise
the machine may be damaged:
1. Locations that cause interference due to static electricity;
2. A place that produces a strong electric field or a strong magnetic field;
3. Locations where there may be radiation radiation;
4. A place with a power cord nearby.
| Installation Environment Requirements |
Atmospheric Pressure | 86~106kPa |
| Mbient Humidity | 0~55℃ | |
| Ambient Temperature | 0~90%RH | |
| IP Rating | IP20 | |
| Vibration | 0~4.9m/s^2 |
Maintenance and inspection Precautions
● do not change the wiring while the power is on, otherwise it may cause electric shock or injury.
● please perform wiring or inspection by professional technicians, otherwise it
may cause electric shock or product failure.
● please check the power after the power is off for at least 5 minutes. Even if the power is turned off,
high voltage may remain inside the servo drive. Therefore, do not touch the power terminal within 5 minutes
after the power is turned off, otherwise it may cause electric shock.
●when replacing the servo drive, please back up the servo driver user parameters to be replaced before the
replacement, and transfer the backup to the new servo drive, and then restart the operation, otherwise the
machine may be damaged.
Other Questions:
Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,
Torque and select the suitable model based our model list;
Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,
Please Just make the programming follow your experiences;
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Packing details of Servo Drive | |||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 |
